Addressing urban heat island effect
Providing high-resolution urban heat maps for cities across Europe to underpin and motivate urban climate adaptation measures that are being developed.
In a nutshell
- Climate projections indicate that the population exposure to extreme heat will rise by more than an order of magnitude towards the end of the century.
- The use case intends to provide high-resolution urban heat maps for cities across Europe to underpin and motivate urban climate adaptation measures that are being developed.
- The urban heat maps will be generated by means of a physics-based high resolution urban climate model, UrbClim, nested within large-scale atmospheric output provided by state-of-the-art global climate models in the DestinE Digital Twin platform.
In this context, this use case intends to provide high-resolution urban heat maps for cities across Europe to underpin and motivate urban climate adaptation measures that are being developed. The urban heat maps will be generated by means of a physics-based high resolution urban climate model, UrbClim, nested within large-scale atmospheric output provided by state-of-the-art global climate models in the DestinE Digital Twin platform. UrbClim will downscale the global climate model results for selected urban areas based on detailed terrain data, providing air temperature and thermal comfort indicators at a spatial resolution of 100m.
The UrbClim model has been applied before in a pan-European context, providing detailed urban climate data for a 10-year historical period for 100 cities in Europe, in the framework of the Copernicus Health contract for the C3S data platform. The data have also been used to work out an Urban Heat Island indicator for the European Environmental Agency’s Urban Adaptation Map viewer. These results have been validated with 67 meteorological measurement stations across Europe, yielding excellent error statistics.

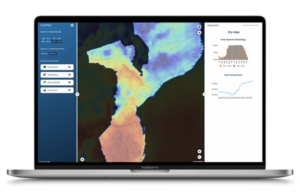

For the service developed in this project, it will be possible to launch the model from an API request, invoking automatic model calculations on DestinE’s core services platform. In the API, the model domain will be specified as well as the number of historical years to be modelled, future climate projection data to be used and the output indicator to be calculated. The urban data and maps will be made available to the user through an interactive interface, including selection, viewing, analysing and download capabilities.
Interested in contributing?
Destination Earth is based on a co-design approach, which enables an agile design process and facilitates the identification of user requirements. Therefore, DestinE invites user communities to contribute to the continuous development and improvement of DestinE capabilities through GitHub.
In the first phase of the project, a broad stakeholder community was gathered around the topic of urban heat stress. Three main users of the service were identified: DG REGIO, the City of Prague and the Lisbon Metropolitan Area. Besides these three main users, a long list of additional stakeholders are involved in the service. Through telco’s and a dedicated hybrid user exchange workshop in Brussels, user needs and requirements were collected, which provided input to shape the outline of the use case.
The Urban Heat service will be compiled in a way that computation of the following output data will be possible:
- Heat stress calculations will be performed for both a recent past period (2011-2020) and future climate projections (2020-2040/2050).
- The climate projections from DT Climate will be compared to IPCC CMIP6 global climate model results.
- Three advanced heat stress variables (the Wet Bulb Globe Temperature (WBGT), the Universal Thermal Climate Index (UTCI) and the Apparent Temperature), that take temperature, humidity, wind speed and radiation into account, will be calculated.
- The calculations will be performed with a horizontal resolution of 100m and will cover the entire metropolitan areas of Prague and Lisbon.
- Both raw hourly output data as well as decadal overview maps will be provided.
- The following output indicators will be provided: Urban Heat Island (UHI) intensity, number of heatwave days, exposure of the population to heatwaves, heat-related mortality, exceedances of health threshold levels, lost working hours and cool island identification.
Furthermore, the potential of the service to assess the impact of climate adaptation measures (e.g. land cover changes, urban trees, soil unsealing,…) will be demonstrated for the two demonstration cities. As this is a manual and context specific process, this aspect will not be included in the automatic operational service.
Important to note is that the service, demonstrated for 2 specific cities, will be implemented in a way that can be easily replicated for any urban area in Europe in a potential follow-up project.
The users and contractor will jointly demonstrate the concrete use of the urban data, maps and user interface. This might be done by overlaying urban heat indicator maps with suitable spatially explicit socio-economic information to derive sectoral heat impact maps. As part of this joint exercise, a performance assessment will be made, considering both the scientific uncertainty of the data and their fitness-for-purpose.
